Thickness:0.1mm-0.13mm
Temperature Grade: -40 centi degree to 136 centi-degree
Dielectric strength: minimum 40 KV/MM
Properties: DOP free, good cold-resistant, low unwinding force(2.0-2.5N/cm) to gurantee high efficiency, wear resisting, corrosion resistant, anti-aging
Products List
Contact Us
Products > PVC Tape Series > PVC tape for wire harness
|

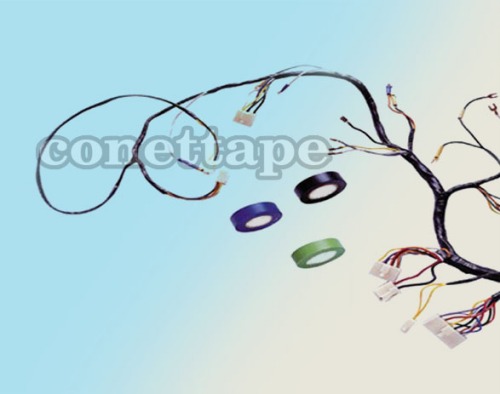

PVC tape for wire harness
Item No.: Conet-14 |
Description
Features and Application Range：
Flame retardant, meet the environmental requirement of low contents of lead, cadmium, chromium and mercury, used for wrapping automotive wire harness
Flame and high temperature resistant, meet the environmental requirement of low contents of lead, cadmium, chromium and mercury, used for wrapping automotive wire harness with high temperature resistance.
PVC film without adhesive, show excellent self adhesion property, used for automotive industry.
Technical Data:
|
Properties |
unit |
Typical data |
Test Method |
||||
|
|
|
110CR |
130CR |
150CR |
165CR |
180CR |
|
|
Total Thickness |
mm |
0.11 |
0.13 |
0.15 |
0.165 |
0.18 |
ATSM D1000 |
|
Width |
mm |
19 |
19 |
19 |
19 |
19 |
ATSM D1000 |
|
Tensile Strength |
N/cm |
18 |
20 |
25 |
28 |
30 |
ATSM D1000 |
|
Elongation |
% |
190 |
200 |
200 |
200 |
200 |
ATSM D1000 |
|
Adhesion Strength |
|
|
|
|
|
|
ATSM D1000 |
|
to steel |
N/cm |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
to Backing |
N/cm |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Dielectric breakdown |
V |
600 |
600 |
600 |
600 |
600 |
UL510 |
|
Flame Resistance |
s |
2 |
2 |
2 |
2 |
2 |
ATSM D1000 |
|
Temperature Resistance |
℃ |
80 |
80 |
80 |
80 |
80 |
ATSM D1000 |
|
Content of heavy metal |
|
|
|
|
|
|
|
|
Lead,Cadmium |
ppm |
30 |
30 |
30 |
30 |
30 |
US EPA3052 |
|
Mercury,Chromium(Ⅵ) |
ppm |
10 |
10 |
10 |
10 |
10 |
US EPA306A |
|
Polybrominated bipheyls |
ppm |
10 |
10 |
10 |
10 |
10 |
US EPA3540C |
|
polyrominated bipheya ethers |
|
|
|
|
|
|
|
